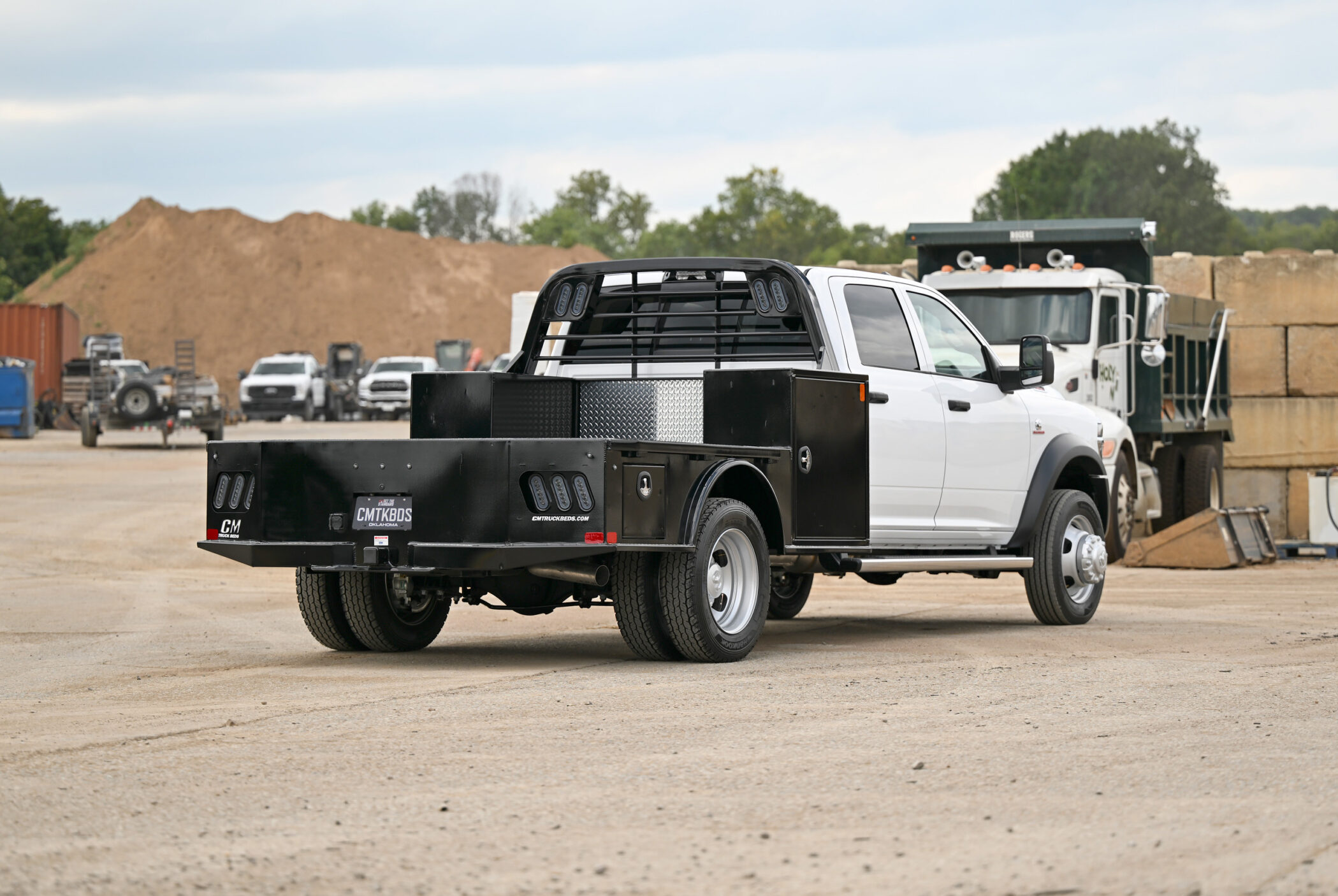

SK Steel Utility Body & SK Deluxe

Build Your Own Truck Bed & 360° Tool

Ford Logo

Ford Logo

Ford Logo

Click on the truck brand to see an interactive version of the standard SK model.

Choose Your SK Model

Click the tabs below to select between the SK and SK Deluxe model specs.

SK Steel Utility Body Specs [Click Here]
SK Steel Deluxe Specs [Showing]

Specs & Features

Lengths 8'6", 9'4", 11'4"
Headache Rack Steel Tube
Deck 1/8" Treadplate
Frame Rails 4" Structural Channel Steel
Crossmembers 3" x 3/16" Channel
Rear Skirt Solid One Piece with Tapered Corners
GN Hitch 30K B&W Hitch with Welded Ball
BP Hitch 24K B&W 2 ½” receiver hitch with receiver tube
Side Rails 3/8" x 2" Side Rails with Stake Pockets
Fuel Fill Angled
12V Trailer Plug 12V Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear
Rear Lighting Clear LED Oval
Light Box (Rear Skirt) Steel
Marker Lighting Bullet DOT Approved LED
Toolbox (2) Standard Integrated in Rear, (2) Tall Vertical Integrated in Front
Toolbox Handle Chrome T Handle Compression
Toolboxes (Special Sizes) 11'4" Models include MEGABOX toolbox configuration
Fenders Steel Radius
Sidesteps In front of and behind fender
Tiedowns N/A

* Beds designed for a RAM Mega Cab will only have two tool boxes in the rear to accommodate standards on this chassis.



Download Model Overview
VIEW OUTFITTER GUIDE

Standard Equipment Information

2 – LED recessed tail, brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

Integrated tube headache rack

Our headache racks are designed with the best and strongest materials to keep you safe when the unexpected happens.

30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

4″ structural steel channel frame rails

Because we don’t use roll-formed runners, our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

3/8″ side rub rails with stake pockets

These accommodate your straps and give you multiple tie-down points throughout your hauling jobs.

1/8″ steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

24,000 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

4″ structural steel channel frame rails

Because we don’t use roll-formed runners, our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

(4) Integrated Toolboxes with chrome T-handle twist compression latches

4 toolboxes with recessed doors, providing maximum safety for your tools. For security, the dual latches lock with a key and padlock loop if desired.
On this Deluxe model, the front tool boxes stand oversized with a vertical configuration for added storage and security for your equipment.

Angled fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

Exclusive Feature:

2 – MegaBox toolboxes (one per side)

Store more with CM’s unique MegaBox toolboxes. At 54″ wide, with easy-access suicide doors, our MegaBox toolboxes hold all your essentials — and more! This feature is available only on 11’4″ models.

Available Options

Wood Flooring

Wood Flooring

Lumber is the most economical and affordable decking solution for end users, and provides a durable, yet easy-to-replace decking option, while still maintaining an entry-level price point. CM Truck Beds uses 2" pine wood flooring.

Blackwood Flooring

Blackwood Flooring

Blackwood decking uses an innovative rubber-infused lumber to provide improved durability, stain-resistance and traction, even in wet conditions. With the tactile surface of Blackwood, your cargo is less likely to shift in transit. The industrial-grade rubber used in Blackwood is the same material used at gun ranges to absorb bullets — so you know it's tough!

Rumber Flooring

Rumber Wood Flooring

Rumber wood is environmentally friendly, stronger than other composites, and impervious to fluids, mud, oil and UV rays. Rumber boards will not crack, rot or split and they have a traction surface that increases safety. They can be cut with a saw, are easily installed, and are easy to clean.

3/16" Deck

CM’s best-in-class 3/16” deck is a heavier duty deck that allows users to haul more weight. Providing higher weight capacity, this available option has the best quality results for your serious hauls.

Cargo Light

Cargo Light

This option provides truck bed lighting so users can see their tools and equipment on the deck. When your oilfield or construction job runs long into the night, trust in CM Truck Beds.

Bail Spike

Bail Spike

Our CM Bail Spike allows users to haul bales of hay. This CM Truck Bed option is hydraulically operated and makes hauling hay simpler and quicker.

30,000lb. B&W Turnover Ball

30,000lb B&W Turnover Ball

The CM Truck Bed 30,000 lb. B&W Turnover Ball option gives users a heavier weight rating and flexibility to haul 5th wheel. This option also allows users to switch back and forth from gooseneck to 5th wheel positions.

CM Truck Beds 5th Wheel Companion

B&W 5th Wheel Companion

This option allows users to haul 5th wheel. The B&W 5th Wheel Companion also allows users to switch back and forth from gooseneck to 5th wheel.

Gooseneck Trough

Gooseneck Trough

CM's gooseneck trough allows users to easily back under a gooseneck without causing damage to their truck body.

Drop in Side Rails

Drop In Side Rails

CM’s drop-in side rails provide protection against damage from shifting cargo or equipment. With this option, your work truck will stay in better condition longer.

Rear Rub Rail

Rear Rub Rail

The CM Truck Bed rear rub rail option provides versatile tiedown points, allowing for safety and security of equipment while hauling.

Dovetail

Dovetail

Offers CM Truck Bed customers lower rear deck height.

CM Truck Beds Stainless Steel Fenders

Stainless Fenders

CM Truck Beds stainless fenders are anti-corrosion and better looking than other competitors in the market. When shopping for a truck bed that will outlast and stay attractive the longest, why not turn to CM?

Color Primer Only

Color Primer Only

CM’s color primer option is a great way to keep your hauler body in good shape and in style. Our primer will prevent rust and corrosion developing on your truck body and give customers a peace of mind to travel off-road or on untreated roads.

Fold Down Side Rails

Fold Down Side Rails

CM Truck Beds now offers fold down side rails on all units with rub-rail. This best-in-class option features tube construction with dual hinge attachment and a spring loaded latch located at the front gusset. These side rails come standard with (4) four adjustable airline track tie-downs complete with a bull ring rated at 5,000 lbs per track. Most impressively, this option can be offered at the time of manufacturing or as an easy bolt-on option to be installed at the distribution location. Once installed, our industry leading hinges have a removable pin, making this the most versatile removable side rail in the industry today. For more information contact your CM Truck Beds distributor.

CTech Toolboxes

We are now offering this cutting-edge storage solution for work truck users seeking maximum durability and functionality. The cabinets feature heavy-duty ball-bearing drawer sliders built to withstand years of heavy use and exposure to the elements.

SK Deluxe with crane

American Eagle Boxes

We are now offering this cutting-edge storage solution for work truck users seeking maximum durability and functionality. The cabinets feature heavy-duty ball-bearing drawer sliders built to withstand years of heavy use and exposure to the elements.
