ER Steel Skirted Hauler Body

Build Your Own Truck Bed & 360° Tool

Ford Logo

Ford Logo

Ford Logo

Click on the truck brand to see an interactive version of this model.

Specs & Features

Lengths 84", 8’6", 9’4", 11’4"
Headache Rack Steel Tube
Deck 1/8" Smooth Steel
Frame Rails 4" Structural Channel Steel
Crossmembers 3" Structural 3/16"
Rear Skirt Solid One Piece with Rear Step
GN Hitch 30K B&W Hitch with Welded Ball
BP Hitch 24K B&W 2 ½” receiver hitch with receiver tube
Side Rails Raised Side Rail with Aluminum Cap
Fuel Fill Angled (Cast Aluminum)
12V Trailer Plug 12V Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear
Rear Lighting Clear LED Oval with Chrome Housing
Light Box (Rear Skirt) Cast Aluminum
Marker Lighting Bullet DOT Approved LED
Toolbox (4) Standard Integrated
Toolbox Handle Chrome T Handle Compression
Fenders Stainless Radius
Sidesteps In front of and behind fender
Tiedowns (4) 18" Airline Track Tiedowns, (4) Attachment Rings

* Beds designed for a RAM Mega Cab will only have two tool boxes in the rear to accommodate standards on this chassis.

VIEW OUTFITTER GUIDE
DOWNLOAD MODEL OVERVIEW

Standard Equipment Information

Steel tubing headache rack with “easy view” window grill

Designed with the best and strongest materials to keep you safe, our “easy view” window grill headache rack not only protects but provides ample room to see when backing up your vehicle.

4″ structural steel channel frame rails

Because we don’t use roll-formed runners, our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

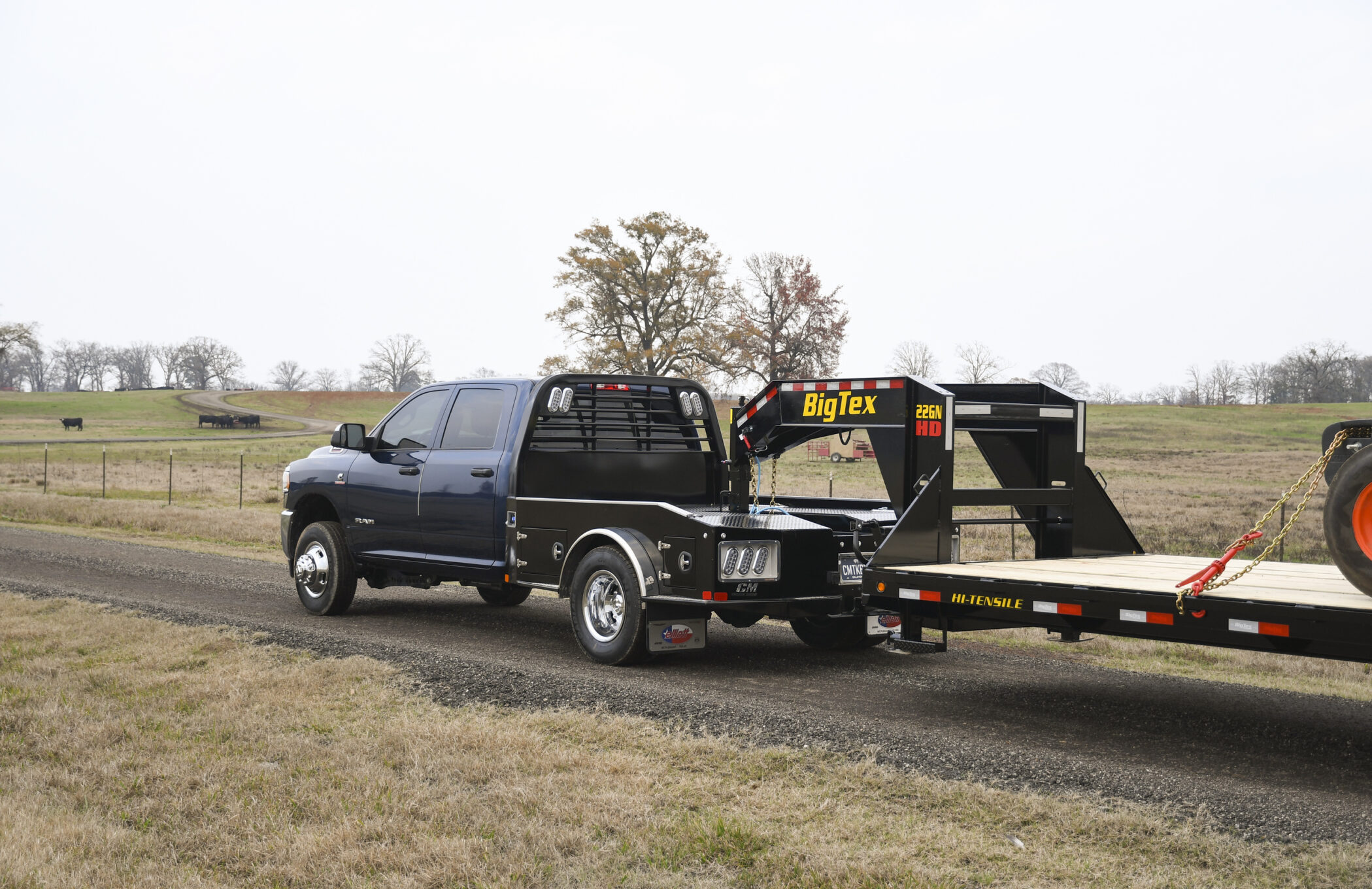

30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

4 – Airline track tie-downs

More versatile tie-down points that are stronger throughout the entire hauling process.

Aluminum side rail cap

CM’s better-looking, strong aluminum side rail caps have a more finished approach and longevity that outweigh our competitors.

1/8″ steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

Aluminum cast insert for LED rear lights and tag

When buying an ER, we know that you are looking for the best-looking, longest lasting materials. That’s why we use cast aluminum housings, which look better and won’t corrode like many of our competitors’ housings.



Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

7-way round and 4-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook on to any trailer.

24,000 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

3″ Steel roll-formed 3/16″ channel crossmembers

These are the toughest and most durable work truck subframes.

2 – LED recessed tail, brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

4 lockable, flush integrated toolboxes with chrome T-handle twist compression latches

Our recessed tool box doors provide maximum safety in our large boxes to prevent weathering of your tools and equipment. For security, the dual latches lock with a key and padlock loop when desired.

* Beds designed for a RAM Mega Cab will only have two boxes in the rear to accommodate standards on this chassis.

Stainless fenders and aluminum tread plate trim

A durable and better-looking fender that will serve you well on the road. Our stainless fenders will last longer and not corrode.

Angled fuel fill

Provides a shinier, and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

Available Options

3/16" Deck

CM’s best-in-class 3/16” deck is a heavier duty deck that allows users to haul more weight. Providing higher weight capacity, this available option has the best quality results for your serious hauls.

Cargo Light

Cargo Light

This option provides truck bed lighting so users can see their tools and equipment on the deck. When your oilfield or construction job runs long into the night, trust in CM Truck Beds.

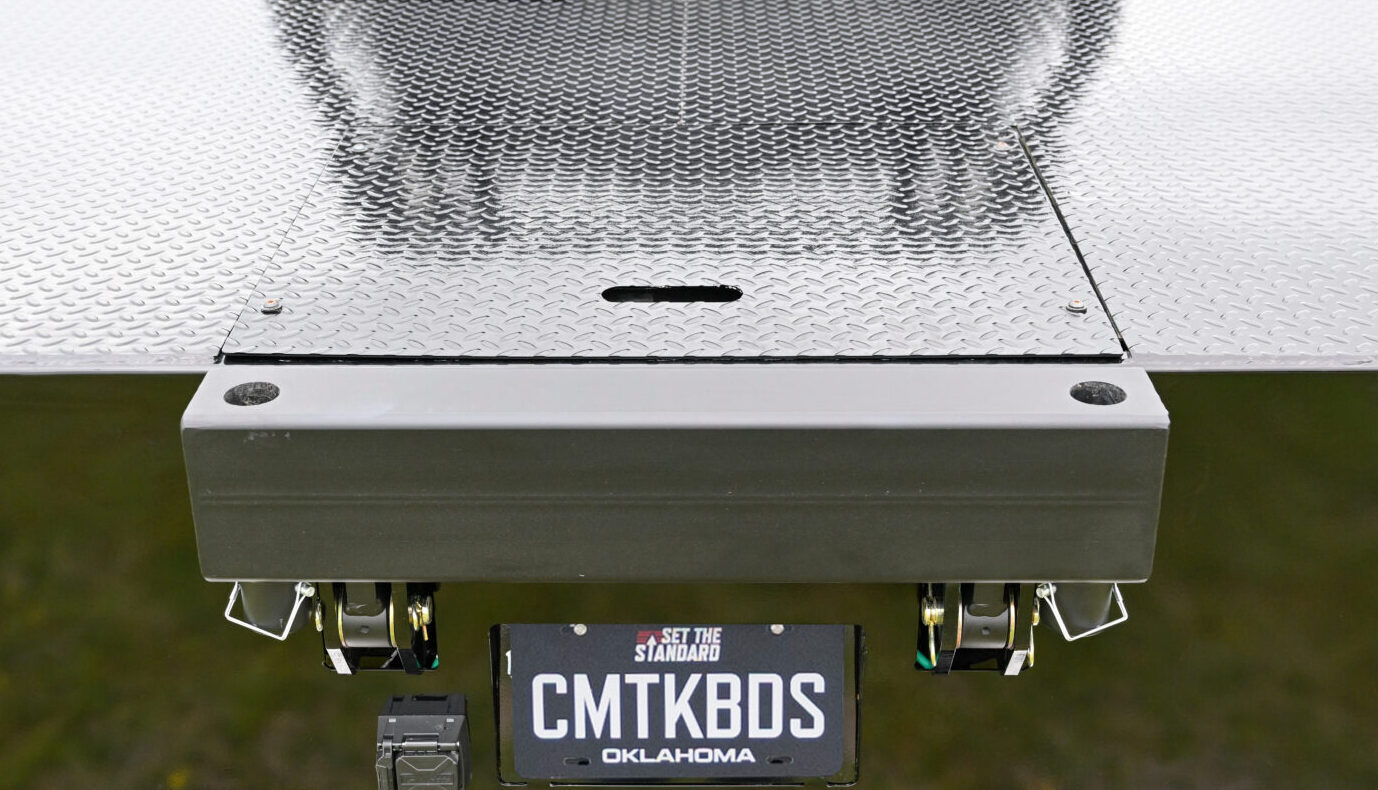

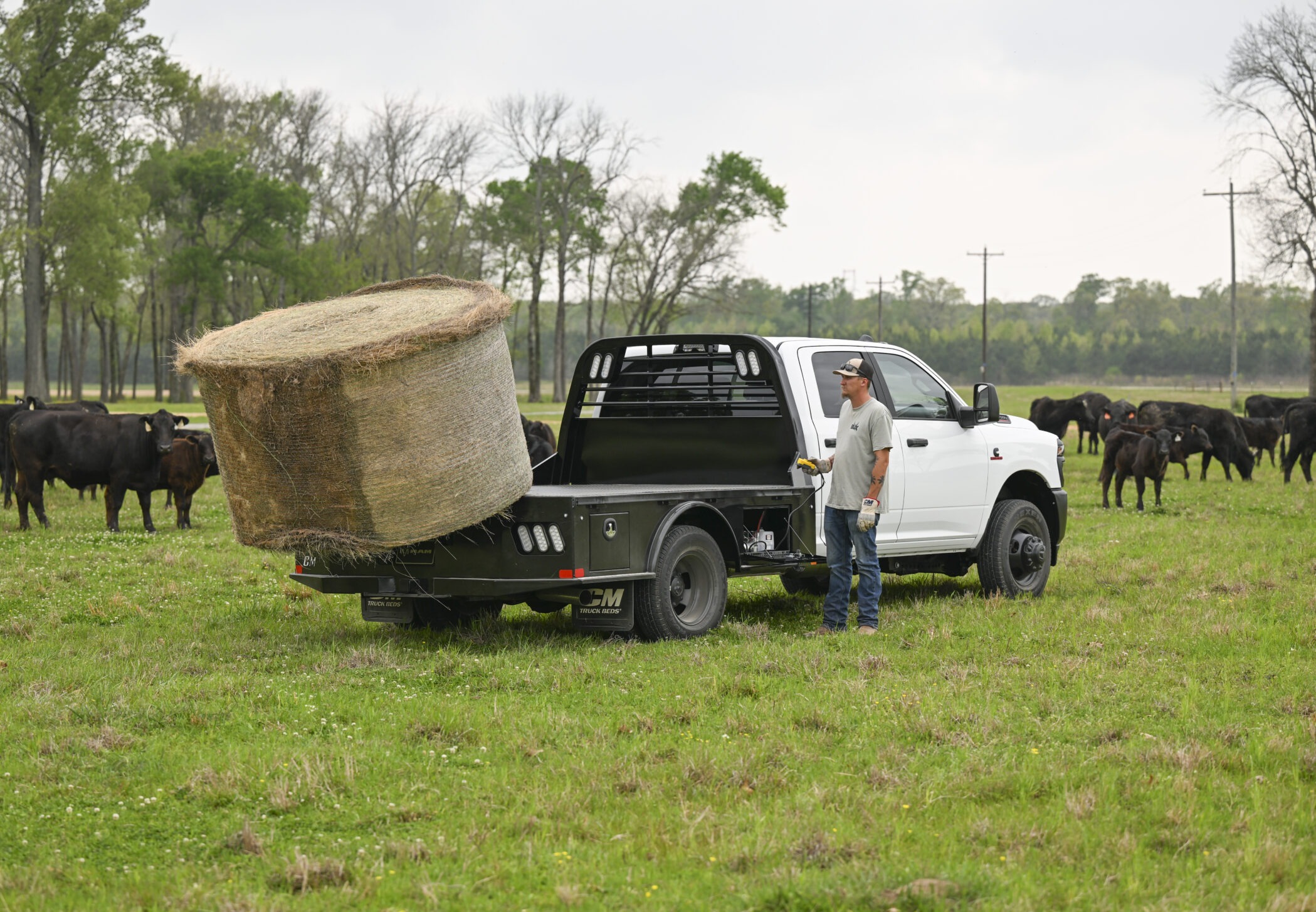

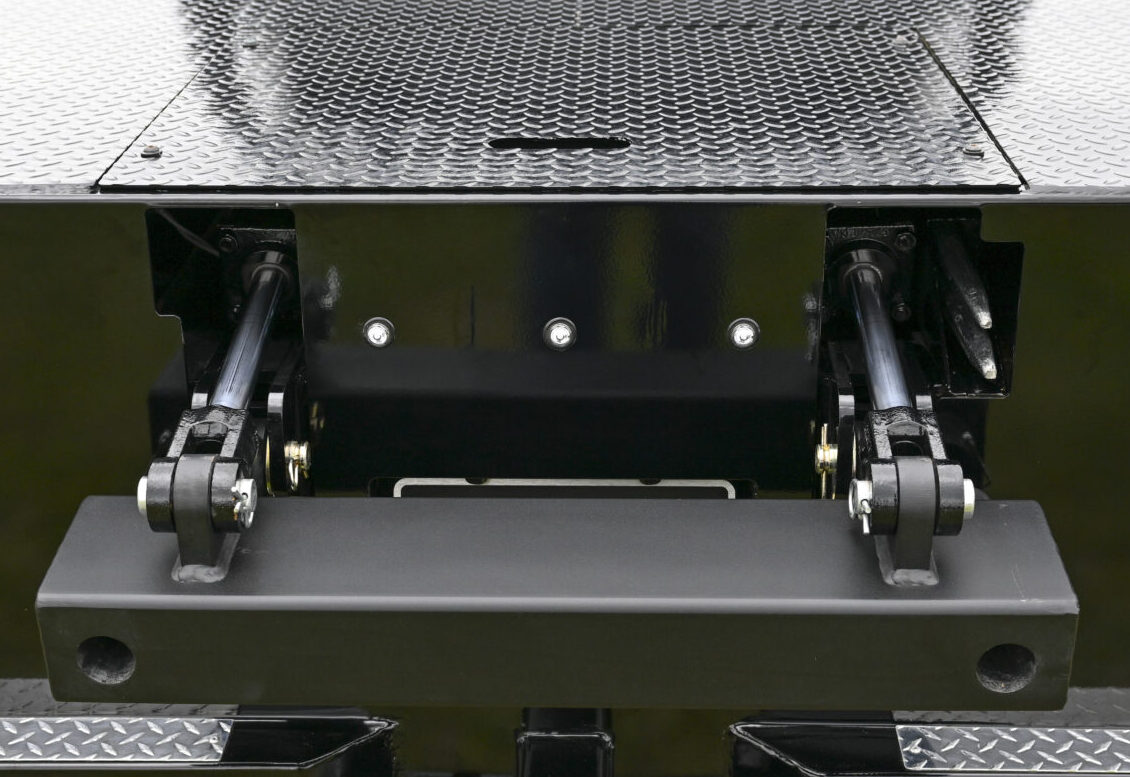

Bail Spike

Bail Spike

Our CM Bail Spike allows users to haul bales of hay. This CM Truck Bed option is hydraulically operated and makes hauling hay simpler and quicker.

30,000lb. B&W Turnover Ball

30,000lb B&W Turnover Ball

The CM Truck Bed 30,000 lb. B&W Turnover Ball option gives users a heavier weight rating and flexibility to haul 5th wheel. This option also allows users to switch back and forth from gooseneck to 5th wheel positions.

CM Truck Beds 5th Wheel Companion

B&W 5th Wheel Companion

This option allows users to haul 5th wheel. The B&W 5th Wheel Companion also allows users to switch back and forth from gooseneck to 5th wheel.

CM Truck Beds Stainless Steel Fenders

Stainless Fenders

CM Truck Beds stainless fenders are anti-corrosion and better looking than other competitors in the market. When shopping for a truck bed that will outlast and stay attractive the longest, why not turn to CM?

Color Primer Only

Color Primer Only

CM’s color primer option is a great way to keep your hauler body in good shape and in style. Our primer will prevent rust and corrosion developing on your truck body and give customers a peace of mind to travel off-road or on untreated roads.
